AP-6375 - aquaplane aluminium flywheel with gear ring

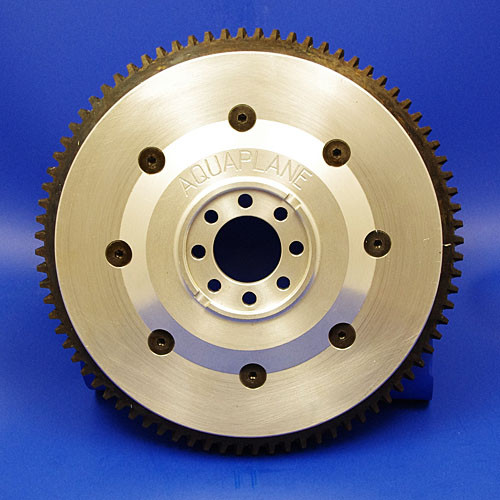

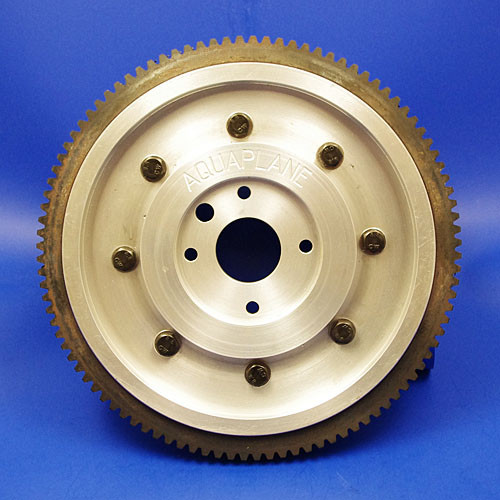

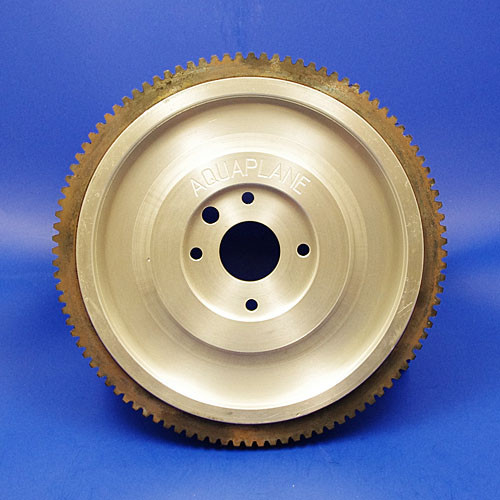

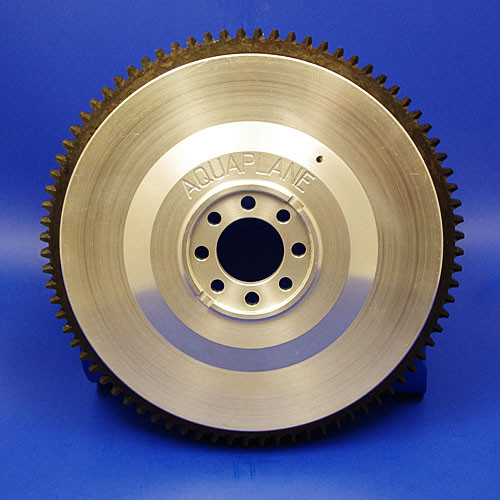

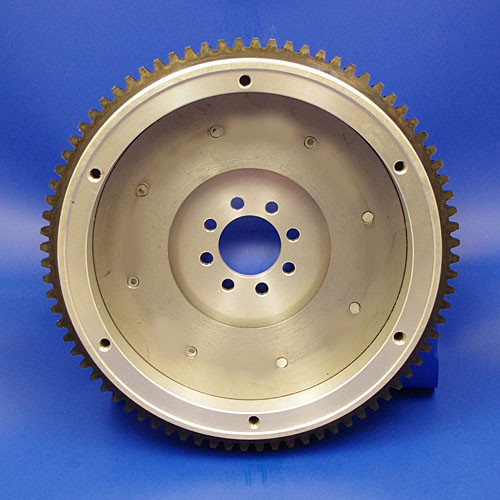

Supplied with steel insert face for clutch friction plate (as shown) or without for extra lightness. specify model 8/10hp or 100E. weights:-
8/10hp without insert - 2.60kgs
8/10hp with insert - 3.23kgs
100E without insert - 3.22kgs
100E with insert - 3.92kgs

Fitting Instructions

Flywheel torque settings

nut tightening torque data for flywheel set screws:
8hp and 10hp - 25 to 28 lb./ft. - 33 to 37 Nm
100E - 21 to 23 lb./ft. - 28 to 31 Nm
105E/123E - 45 to 50 lb./ft. - 60 to 67 Nm

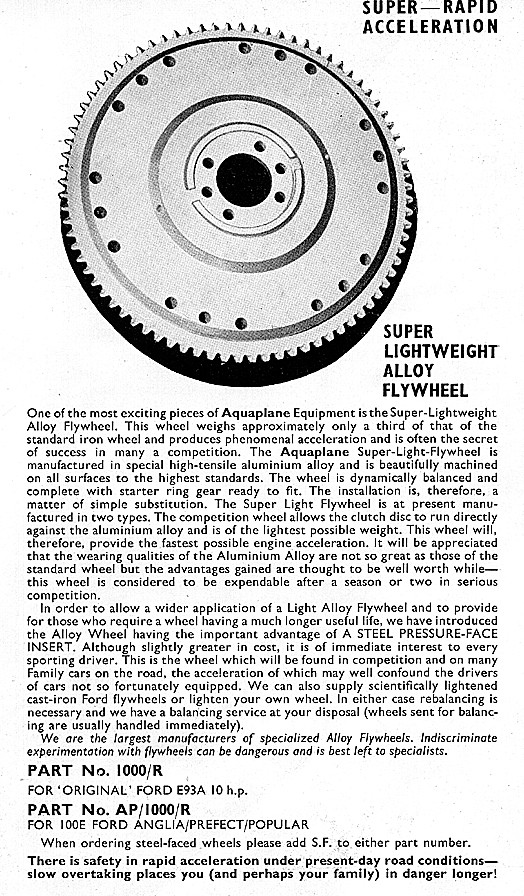

Diagrams including aquaplane aluminium flywheel with gear ring
