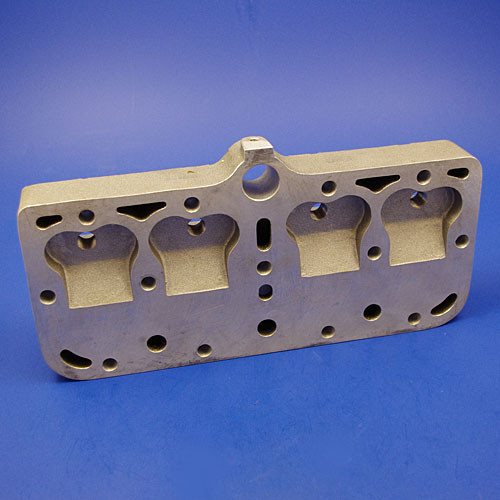

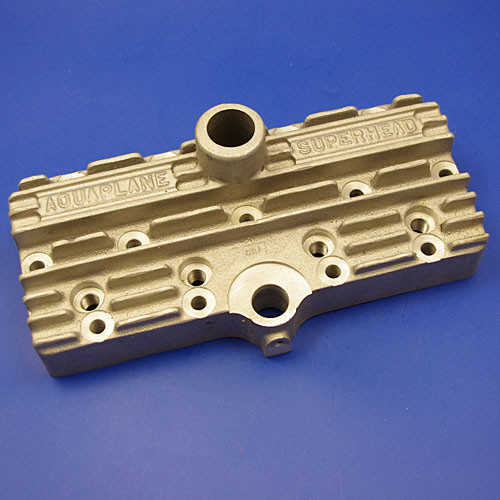

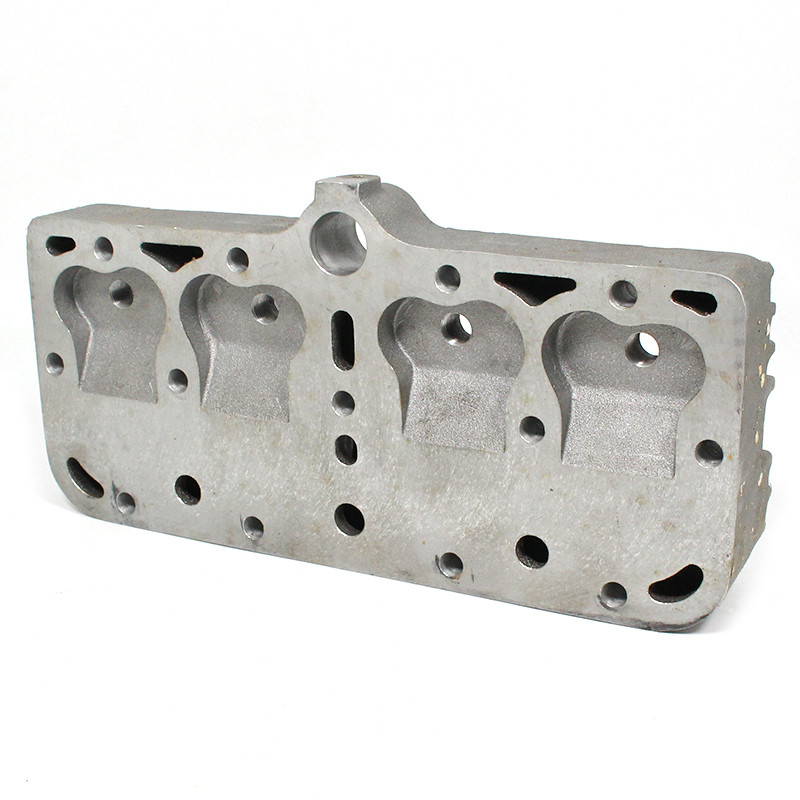

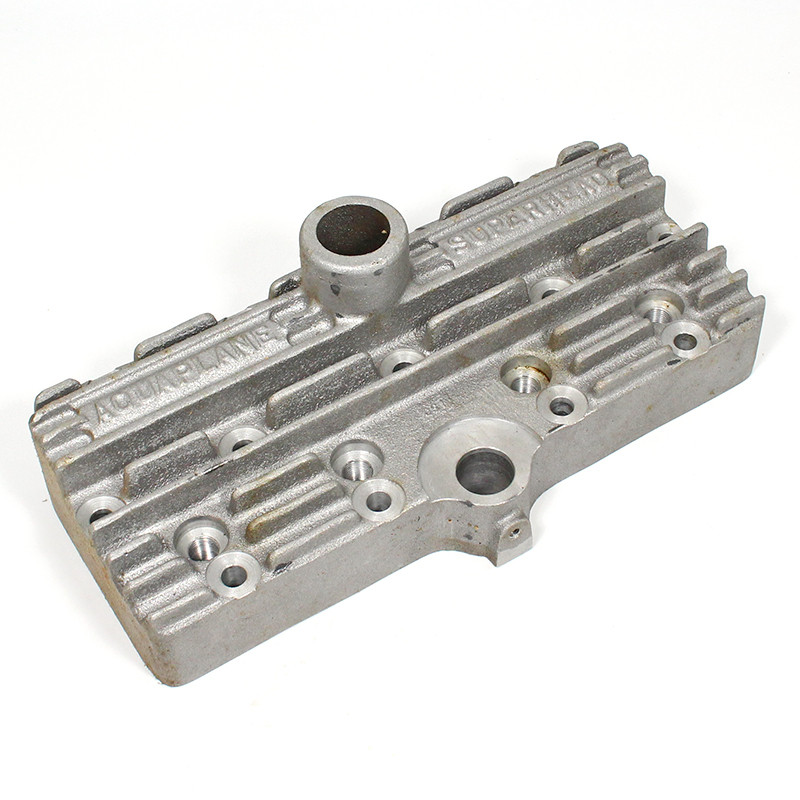

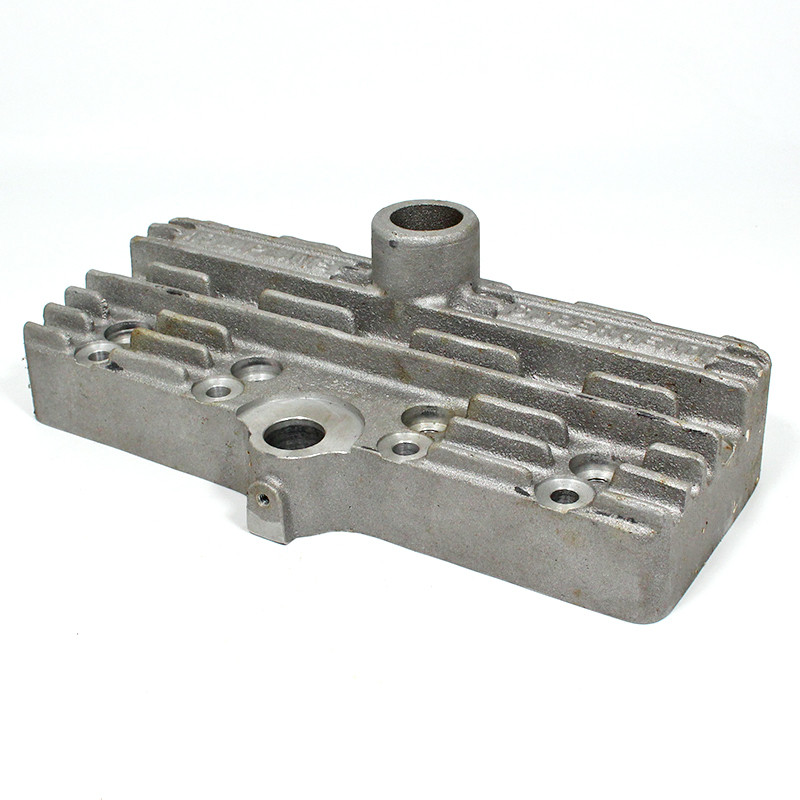

AP-6050-E93A - aquaplane cylinder head

Aquaplane alloy cylinder superhead for 10hp model. weight approx 3.5kg

Fitting Instructions

Cylinder head torque settings

torque data for tightening cylinder head nuts:
8hp and 10hp -30 to 35 lb./ft.- 40 to 47 Nm
100E - 65 to 70 lb./ft - 88 to 94 Nm
105E/123E - 65 to 70 lb./ft- 88 to 94 Nm

Diagrams including aquaplane cylinder head
