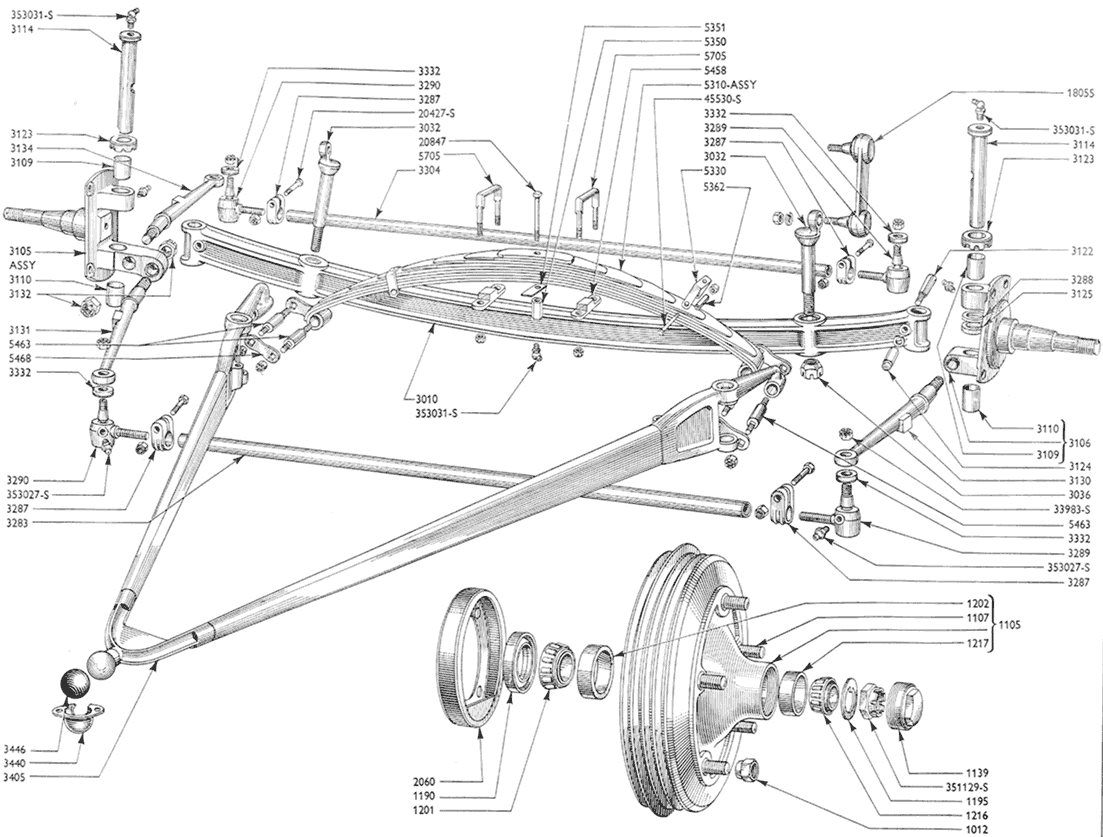

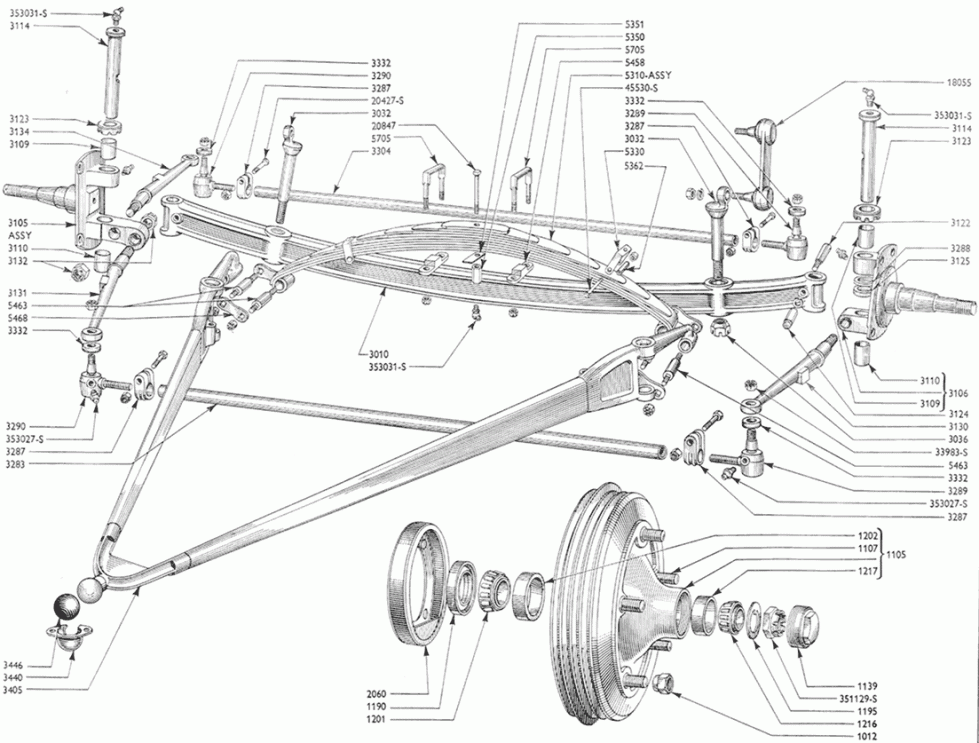

front axle E83W
For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- 351129S: front hub nut E83W from £13.89 each
- B1012: wheel nut from £6.49 each
- 681139: front hub grease cap from £9.17 each
- 481190A: front hub seal from £9.17 each
- B1195: front wheel bearing retaining washer from £5.72 each
- EB1201/EB1202: front wheel bearing inner from £41.25 each
- B1216/B1217: front wheel bearing outer from £35.54 each
- E83W3032: Bolt (front axle to radius rod) from £36.38 each
- B3036: nut (front radius rod bolt)) from £7.64 each
- E83W33111: King pin set from £199.55 each
- Y3446: Bush (radius rod ball) rubber from £7.59 each
- 405463B: shackle stud assy from £15.31 each
- 91A5468A: End plate from £4.82 each
- E83W3289: track rod end E83W from £45.06 each
- E83W3290: track rod end E83W from £45.06 each
- E83W3106: stub axle assy left hand from £94.58 each
- E83W3134A: steering arm from £30.13 each
- E83W3134B: steering arm from £30.13 each
- E83W3130A: steering arm right hand from £25.67 each
- E83W3131A: Steering arm left hand from £64.45 each
- E83W3130B: steering arm right hand from £25.67 each
- E83W3131B: Steering arm left hand from £64.45 each
- 78E3332: dust cap rubber from £5.26 each
- B3110: Bush (spindle/king pin bush) from £7.75 each
- B3123A: thrust bearing from £28.94 each
- B3125: felt seal from £0.89 each
- B3288: Retainer from £6.90 each
- B3122/4: cotter pin & nut from £15.08 each
