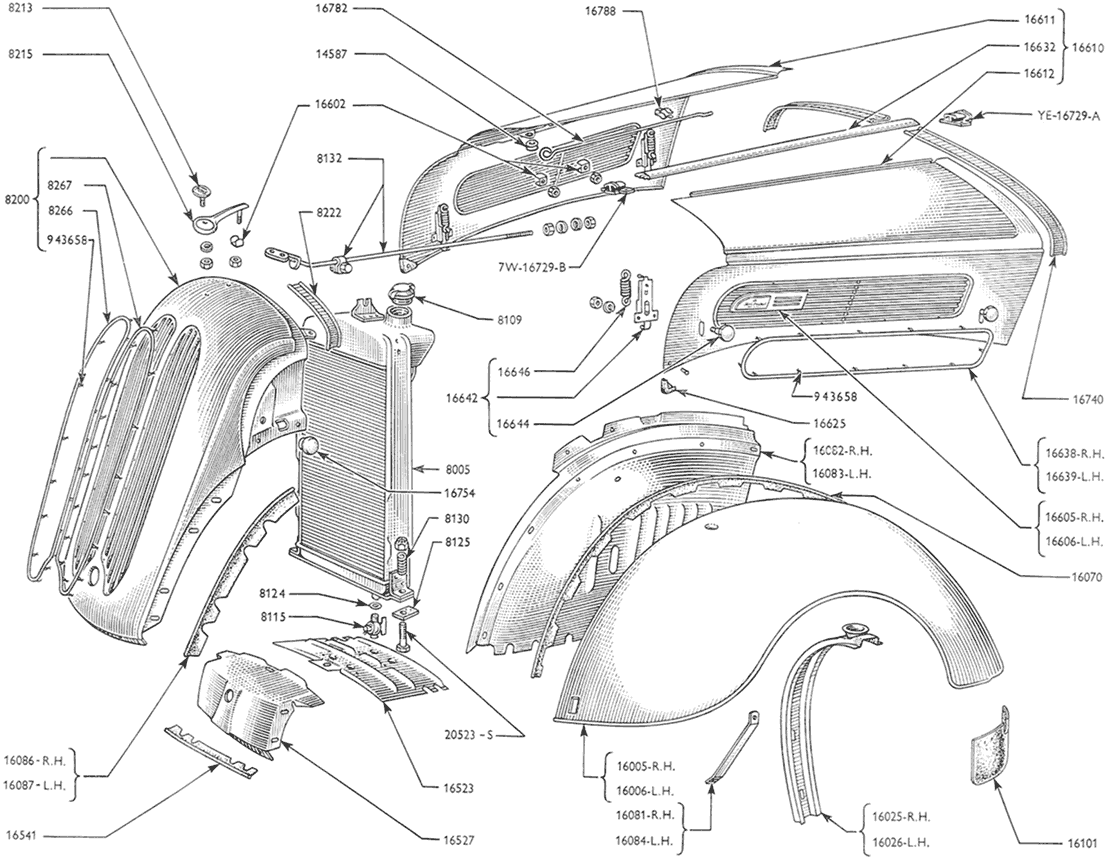

bonnet, grill, wings 8 & 10hp
For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- B8130S: radiator to frame mount from £21.39 each
- Y8109: Radiator cap from £50.82 each
- 7W8115: radiator drain tap from £14.24 each
- E0A8100A: radiator pressure cap from £7.70 each
- 7W16625: Rubber bonnet corner With metal bonded insert from £6.22 each
- 246: Bonnet tape beaded type 5/8" (16mm) from £8.35 metre
- 619: Headlamp bowl gasket For 700 series lamps, 2 adjuster type from £7.27 each
- 654: Bifurcated copper split rivet from £3.14 pkt of 10
- 780: Rubber grommets WITH hole from £7.50 packet
- 7W8215A: radiator ornament from £41.26 each
- E494A8215: radiator ornament from £45.40 each
- Y8215B: radiator ornament from £71.29 each
- YE8215: radiator ornament from £81.30 each
- CE8215: radiator ornament from £80.02 each
- 7W16729B: Bonnet hinge bracket from £19.17 each
- E493A16605/6A: bonnet side ornament from £89.66 pair
- 16632: Chrome bonnet strip hinge 1270mm length from £89.06 each
- 7W16632: Chrome bonnet strip hinge 845mm length from £76.40 each
- B16729: Bonnet hinge bracket from £23.43 each
- YE16729A: Bonnet hinge bracket from £23.86 each
- 7W16644B: Knob for bonnet catch Plain from £21.85 each
- 7W16644C: Knob for bonnet catch Ringed from £22.85 each
- E494A8213: Anglia enamel badge red from £18.93 each
- 103E8213A: Ford Popular chrome badge from £16.50 each
- B8213: Ford enamel badge blue from £18.93 each
- E03CF/A8213: Thames enamel badge blue from £18.93 each
- 7W8213: Ford enamel badge red from £18.93 each
- C943658: Wire trim clip 5.5mm wide from £0.63 each
- E93A16605/6A: bonnet side ornament from £89.40 pair
- 79E8213: Fordson enamel badge blue from £22.51 each
- 103E8213RED: Ford Popular badge red from £18.93 each
- E04A16658/9: Budget lock Hook type from £10.16 each
- E494A17781: bumper bar Anglia / Popular from £265.74 each
- 7Y16101: mud flap front wing from £18.29 pair
- E493A17757C: bumper bar front (with start handle hole) from £291.02 each
Applies to Vehicles
- Ford Eight, Model 7Y (1937 to 1939)
- Ford Ten, Model 7W (1937 to 1939)
- Ford Anglia, Model E04A (1939 to 1948)
- Ford Prefect, Model E93A (1939 to 1948)
- Ford Anglia, Model E494A (1949 to 1953)
- Ford Prefect, Model E493A (1949 to 1953)
- Ford Popular, Model 103E/104E (1953 to 1959)
- Ford 5 cwt. Van, Model E04C (1940 to 1948)
- Ford 5 cwt. Van, Model E494C (1949 to 1954)
