139: wiring diagram Thames 5 cwt van

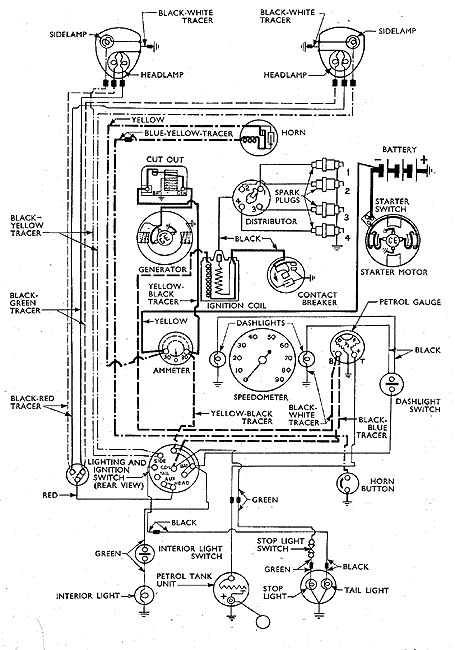

wiring diagram Thames 5 cwt van

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford 5 cwt. Van, Model E04C (1940 to 1948)
Ford 5 cwt. Van, Model E494C (1949 to 1954)

Tax & Shipping

ALL PRICES SHOWN ARE CARRIAGE EXTRA - Shipping will be calculated after we receive your order. The Stock & Delivery information page has more info and estimated costs. You may also use the 'Request Quote' links on the cart to get request a total including shipping for the parts selected.

Vat is applicable to all UK orders.

Choose Currency

Prices in currencies other than GBP are for guidance only. The actual rate will be that used by the credit card company at the time of billing.

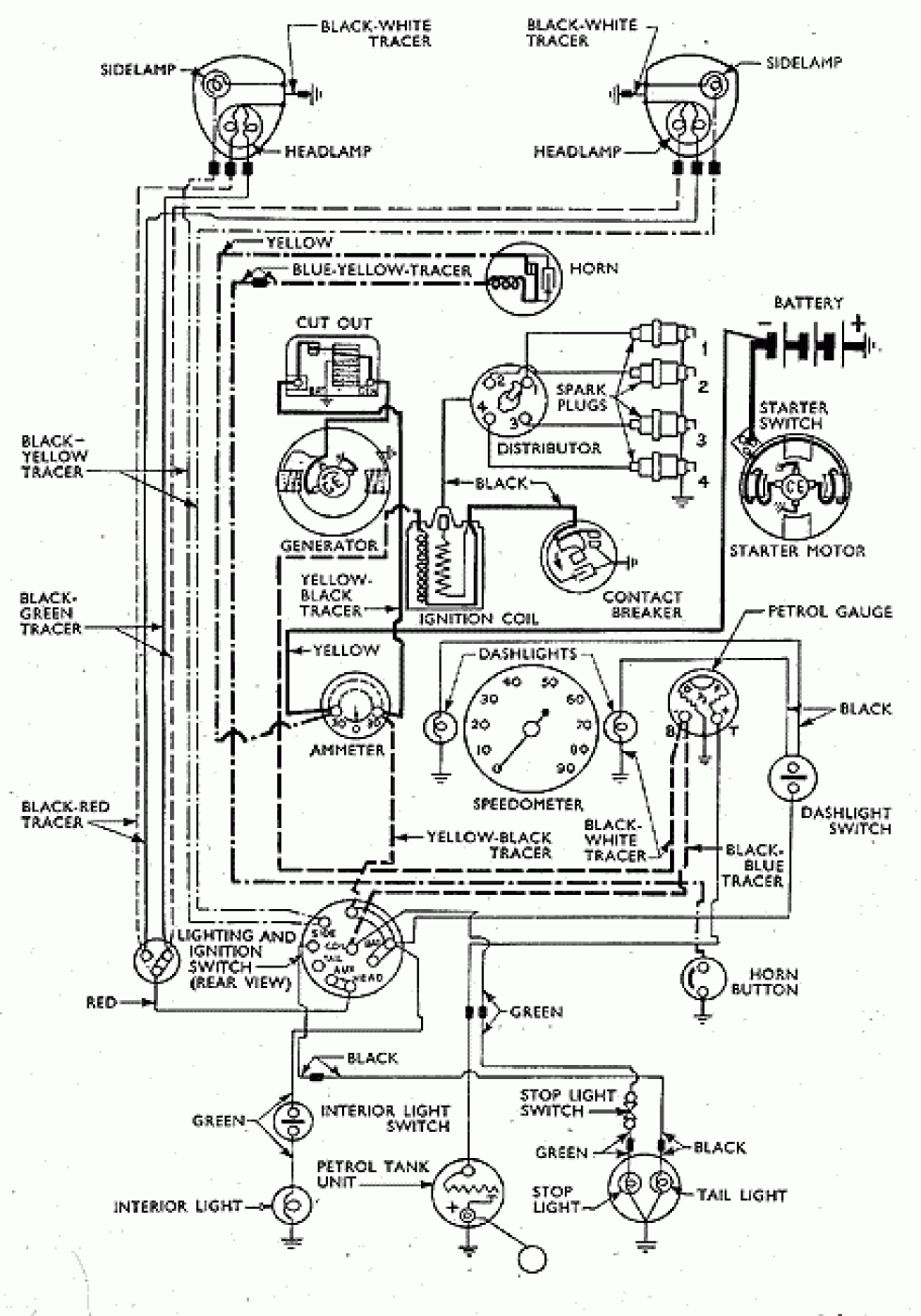

wiring diagram Thames 5 cwt van
