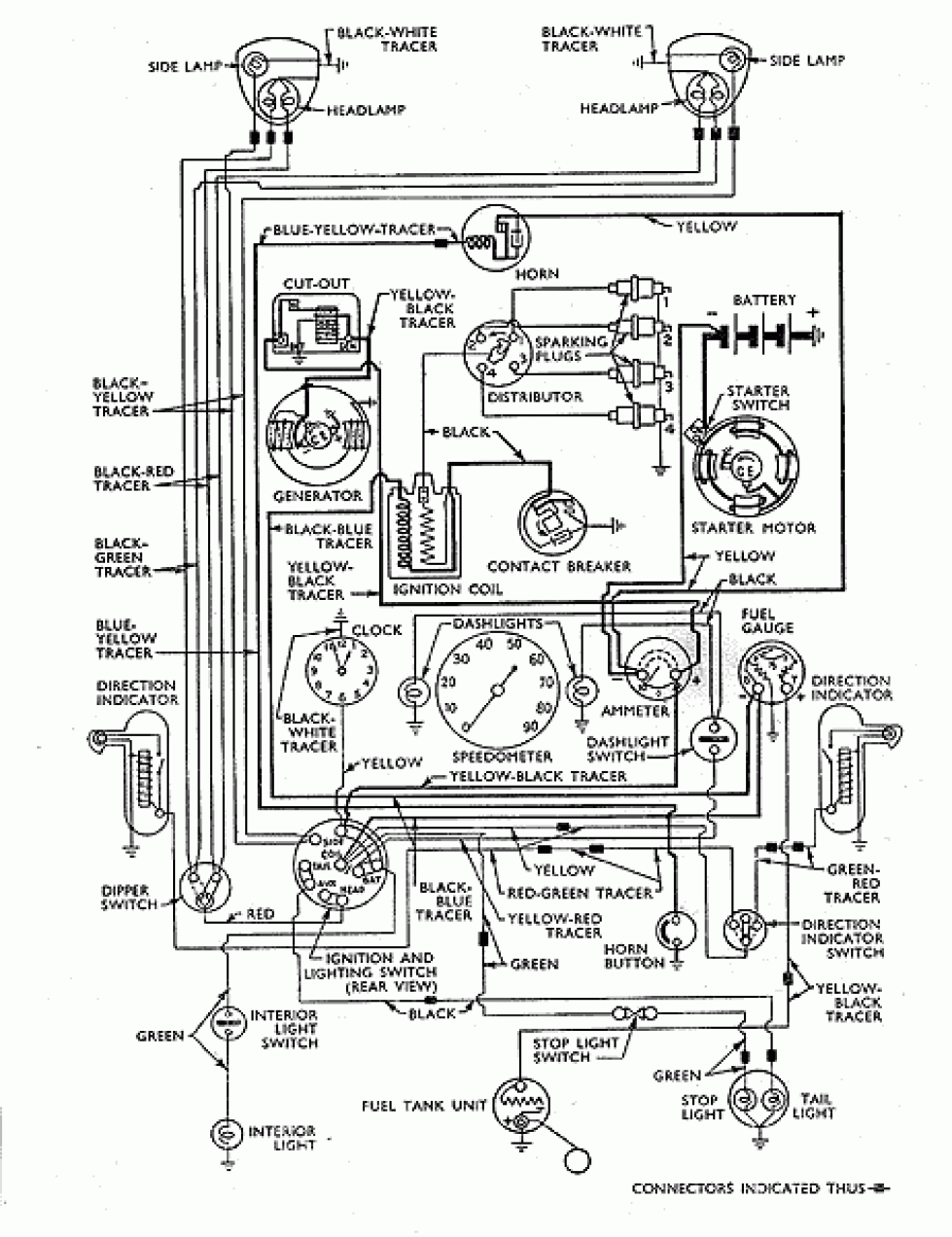

  7. 130: wiring diagram Prefect 3 brush dynamo pre 1945

wiring diagram Prefect 3 brush dynamo pre 1945


(click to open full sized in new window)
For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown
