gearbox & clutch 8 & 10 hp

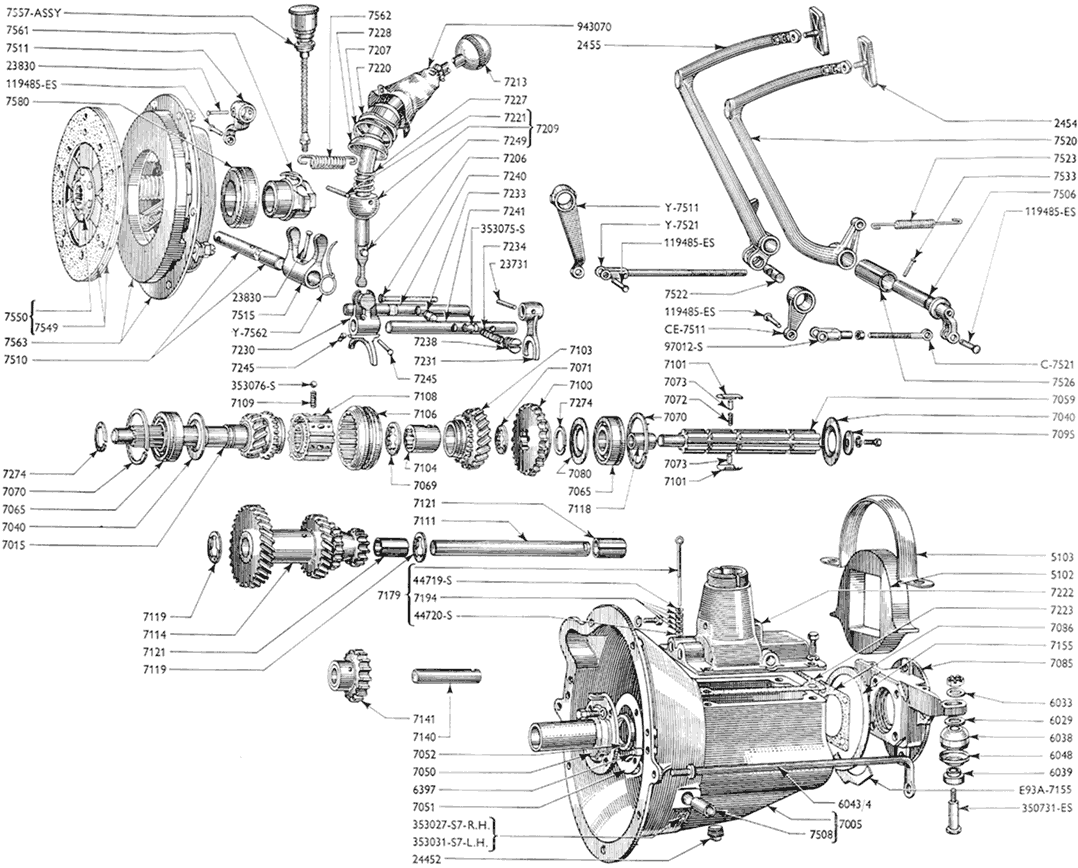

For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- 786038S: Engine mount rear, gearbox mount from £44.23 each
- Y7080: baffle, thick from £6.09 each
- C943070: Gear stick/lever gaiter rubber Base 142mm x 110mm, height 100mm from £19.19 each
- Y7550: Clutch friction plate from £75.00 each
- YE7563BEXCHANGE: Clutch pressure plate Clutch pressure plate on exchange basis from £139.94 each
- E83W7563: Fordson E83W Clutch Pressure Plate from £139.72 each
- E83W7550: Clutch friction plate from £77.73 each
- Y7040: baffle, thin from £6.09 each
- 7W7052: seal (main drive gear) from £9.94 each
- Y7065: Bearing from £29.80 each
- Y7069: thrust washer (2nd gear) front from £13.02 each
- E15GA1: snap ring from £3.98 each
- Y7104: bush (2nd gear) from £35.86 each
- Y7111: countershaft from £25.87 each
- Y7118A: bush (main drive gear) from £18.29 each
- Y7121A: Bush (countershaft gear) from £14.58 each
- E83W943070: Gear stick/lever gaiter rubber 93mm diameter x 60mm high from £18.36 each
- C7510: shaft (clutch release) from £36.64 each
- E747580A: Clutch release bearing from £55.04 each
- Y5102: rear engine mount from £54.61 each
- CE7141: gear, reverse idler & bush from £29.15 each
- YE7015: main drive gear from £82.68 each
- 7Y7015: main drive gear from £58.20 each
- Y7100: first and reverse sliding gear from £41.71 each
- Y7109S: Synchro hub ball & spring from £24.07 each
- Y5103: Strap, engine rear support from £59.62 each
- AQ7114/7015: Close ratio gear set from £504.65 set
- CE7100: first and reverse sliding gear from £45.17 each
- Y7103/4: intermediate gear with shaft sleeve from £109.98 each
- Y7523A: pedal return spring from £11.11 each
- Y7523B: pedal return spring from £10.45 each
- 100E7223: gasket from £4.17 each
- Y7051: gasket from £1.86 each
- Y6397: dowel from £1.46 each
- YE7095: washer from £1.86 each
- Y7155: retainer from £4.81 each
- Y7140: reverse idler shaft from £25.21 each
- Y7233: plunger from £4.30 each
- Y7234: gear change spring from £4.43 each
- E93A7245: selector pin from £1.15 each
- Y7221: trunnion from £2.90 each
- YE7230B: selector fork from £21.88 each
- Y7231: selector fork from £18.29 each
- YE7230A: selector fork from £31.96 each
- 7W7533: clevis pin spring hook from £9.41 each
- CE7511A: lever arm from £24.64 each
- CE7511B: lever arm from £31.57 each
- Y7515: Clutch fork from £39.77 each
- Y7522: trunnion nut from £5.13 each
- CE7521B: clutch rod from £11.15 each
- B7562B: return spring from £6.59 each
- Y23830: clutch fork retaining pin from £4.69 each
- YE7563BSALE: Clutch pressure plate Clutch pressure plate for outright sale from £249.94 each
Applies to Vehicles
- Ford Model 19, Y (1932 to 1937)
- Ford Model 20, C & CX (1934 to 1937)
- Ford Eight, Model 7Y (1937 to 1939)
- Ford Ten, Model 7W (1937 to 1939)
- Ford Anglia, Model E04A (1939 to 1948)
- Ford Prefect, Model E93A (1939 to 1948)
- Ford Anglia, Model E494A (1949 to 1953)
- Ford Prefect, Model E493A (1949 to 1953)
- Ford Popular, Model 103E/104E (1953 to 1959)
- Ford 5 cwt. Van, Model E04C (1940 to 1948)
- Ford 5 cwt. Van, Model E494C (1949 to 1954)
- Ford 10 cwt. Van, Model E83W (1938 to 1957)
- Ford Estate Car, Model E83W (1949 to 1957)
- Ford Pickup, Model E83W (1950 to 1957)
