129: wiring diagram Anglia 3 brush dynamo pre 1953

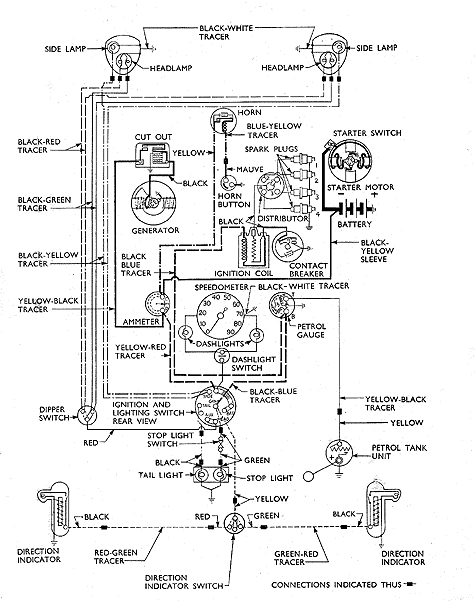

wiring diagram Anglia 3 brush dynamo pre 1953

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford Anglia, Model E04A (1939 to 1948)
Ford Anglia, Model E494A (1949 to 1953)
