128: wiring diagram 7W and 7Y

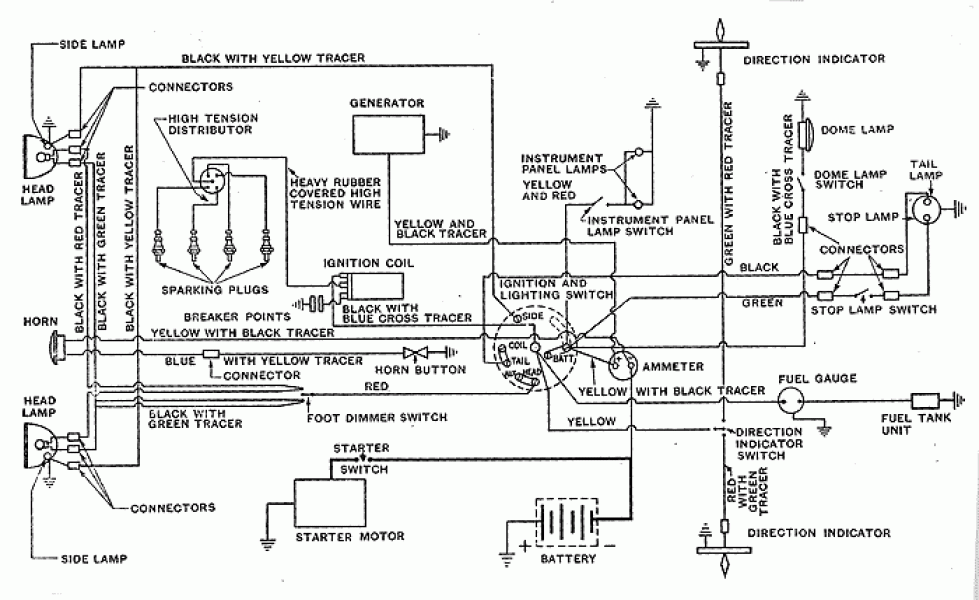

wiring diagram 7W and 7Y

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford Eight, Model 7Y (1937 to 1939)
Ford Ten, Model 7W (1937 to 1939)
