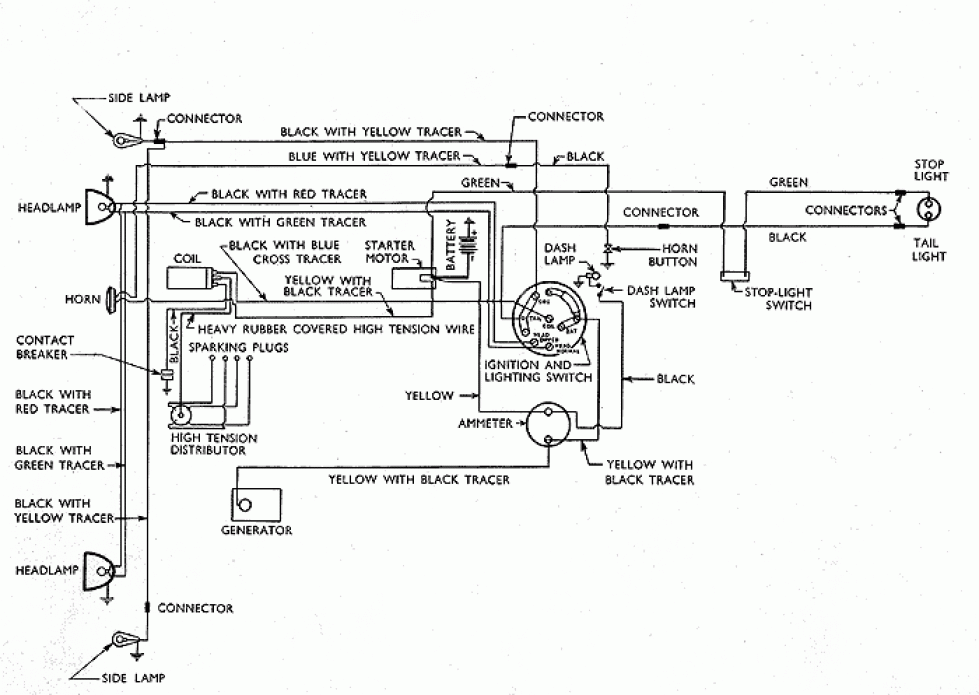

126: wiring diagram model Y

wiring diagram model Y

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford Model 19, Y (1932 to 1937)
