brakes 32-37

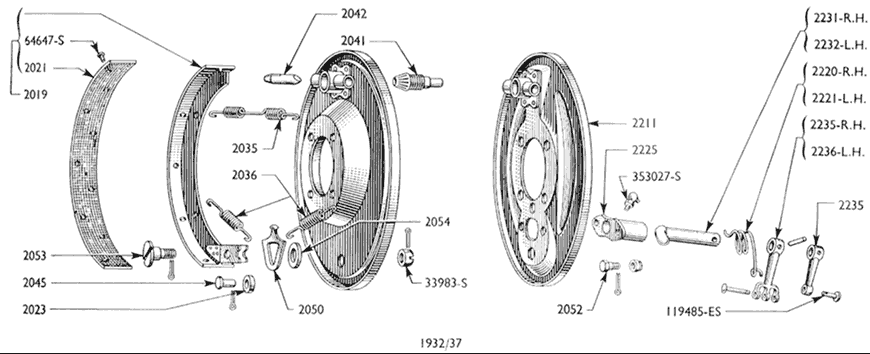

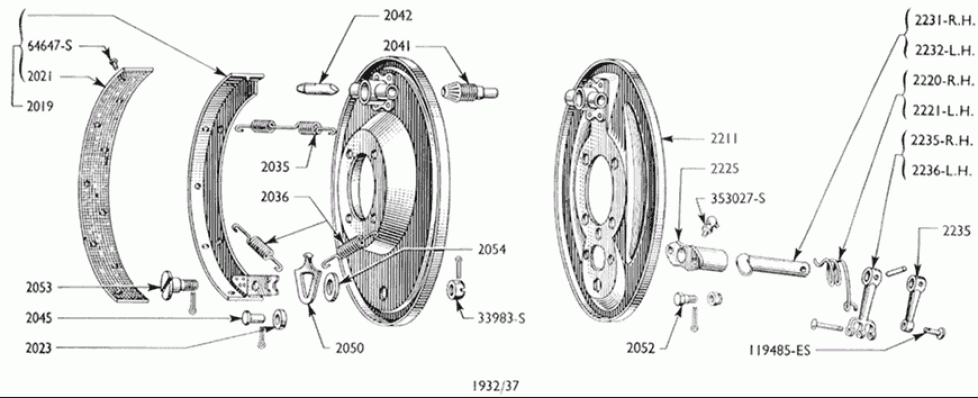

For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- CE2235REP: lever rear brake cam from £44.66 each
- Y2231: camshaft (rear brake) r/h from £21.88 each
- Y2232: camshaft (rear brake) l/h from £21.88 each
- CE2231: camshaft (rear brake) r/h from £27.91 each
- YE2019A: brake shoe relined from £81.77 each
- CE2019B: brake shoe relined from £71.02 each
- YE2023: brake shoe roller from £9.94 each
- 482023: Brake shoe roller from £11.34 each
- Y2035/6: brake shoe retracting spring kit from £39.56 axle set
- C2035: brake shoe retracting spring from £8.73 each
- Y2041: brake adjusting wedge from £15.98 each
- YE2045B: Pin brake shoe roller from £9.76 each
- YE2050: brake operating wedge from £17.70 each
- 482050: brake operating wedge from £26.00 each
- Y2075: brake operating pin from £14.65 each
- CE2075: brake operating pin from £14.65 each
- Y2076: brake operating shaft from £27.91 each
- Y2077: brake operating shaft from £27.91 each
- Y2082: bush front brake shaft from £10.28 each
- Y2096: spring (brake lever) from £8.54 each
- Y2097: spring (brake lever) from £8.54 each
- Y2220: Spring (brake lever) from £9.88 each
- Y2221: spring (brake lever) from £9.88 each
- Y2235: lever rear brake cam from £22.97 each
- Y2236: lever rear brake cam from £22.97 each
- CE2225: bracket from £43.70 each
- CE2236REP: lever rear brake cam from £44.66 each
- YE2502B: support, front brake rod from £8.65 each
- Y2084: front brake lever 3237 from £28.87 each
- CE2053: brake operating wedge stud 3537 from £7.00 each
- C2235: rear brake cam lever 3437 from £23.94 each
- Y2036: Brake shoe pull off return spring from £6.68 each
- Y2035: brake shoe return spring from £6.59 each
- YE23822: clevis pin from £7.64 each
- Y7523A: pedal return spring from £11.11 each
- Y7523B: pedal return spring from £10.45 each
- C2220: spring (brake lever) from £7.90 each
- C2221: spring (brake lever) from £7.90 each
- CE2481: brake cross shaft from £32.80 each
- CE2021: brake shoe linings from £56.00 axle set
